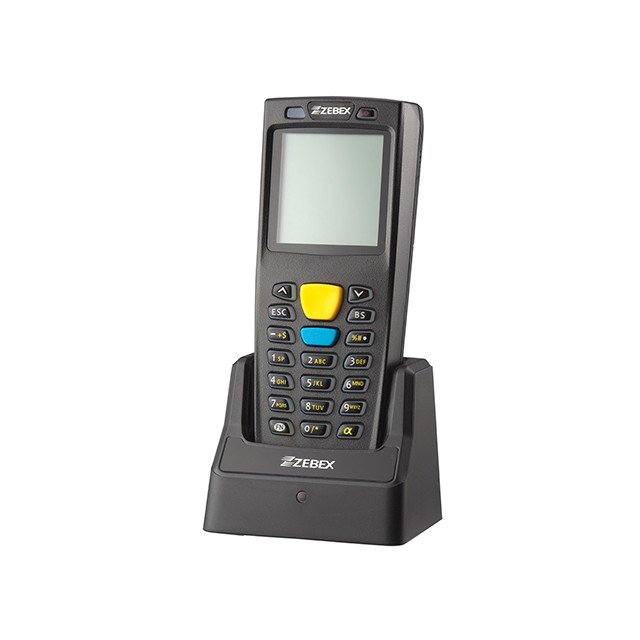

Terminal Z-9000

Prenosni terminal za zajem podatkov Z-9000

Z-900x Series redefines simplicity with more simple features and less complicated options. Enhanced with the brand new, easy to use ZAC (ZEBEX Application Creator) program, Z-900x Series allows users to achieve maximum efficiency through intuitive settings and user friendly interfaces. In addition, Z-900x Series is uniquely shaped with a neat and rugged appearance to allow precision control with just one hand. Optimized to fit your needs, the Z-900x Series comes with wide variety of scanning options, including 1D, 2D, and laser readers. Advanced features such as 32-bit CPU, wireless connection, status LED, and reliable IP54 seal are also included.

Tehnične podrobnosti:

System:

CPU 32 bit RISC ARM Cortex-M4 100MHz microprocessor
Memory 8 MB Flash ROM, 4 MB RAM
Display Mono FSTN, 128 × 128 dots graphic LCD with white back light
Keypad & Button Total 21 keys for full alpha/numeric input and system control keypads with LED back light
Indicator Two-color LED (green & red)
Beeper Operation Programmable tone & beep time
Interface USB 2.0 full-speed device compliant

Power:

Main Battery   1,150 mAh, 3.7V Li-ion rechargeable battery
Backup Battery  15 mAh, 3.0V Lithium rechargeable battery

Physical:

Dimension 132.0 × 59.0 × 29.0 mm
Weight 157 g (battery included)

Environmental:

Operating Temperature 0°C – 50°C (32°F – 122°F)
Storage Temperature -20°C – 60°C (-4°F – 140°F)
Humidity 5% – 95% RH (non-condensing)
Drop Durability Designed to withstand 1.2M drops
Tumble Resistance 0.5M × 1000 times
Environmental Sealing IP54 rated sealing
